Washing Machine Drum Sheet Washing Machine Stamping Die Prototype Metal Stamping

Brand Name : IDO

Model Number : washing machine drum

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Washing machine drum sheet

Part Material : SUS430

Mould Type : Stage mold

Mould Size : 2100*800*560mm

Mould Weight : 7T

Punch Tonnage : 250T

Sheet Thickness : 0.4mm, 0.5mm, 0.6mm

Specification : Non-standard

Contact Now

Stage Die For Washing Machine Drum Sheet With After-Sales Support

Description:

As a leading Chinese stamping die manufacturer, we specialize in high-precision stage dies for washing machine drums. Our commitment extends beyond manufacturing to include professional after-sales support, ensuring your die performs reliably throughout its lifespan and helping you achieve maximum production efficiency.

Our Advantages:

We offer comprehensive metal stamping and automation solutions. Our facility is fully equipped with advanced machinery, including CNC machining centers, wire-cutting machines, and precision testing equipment.
With our deep technical expertise, we manage the entire workflow, from mold design and processing to assembly, debugging, and manufacturing. We provide a complete one-stop service to tackle your most complex industry challenges and deliver full automation solutions.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

Washing Machine Drum Sheet Washing Machine Stamping Die Prototype Metal Stamping

Product Tags:

7T Washing Machine Stamping Die

2100mm prototype metal stamping

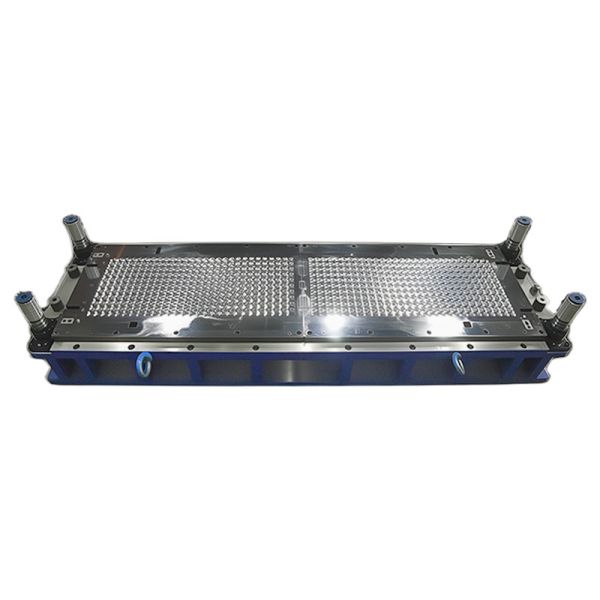

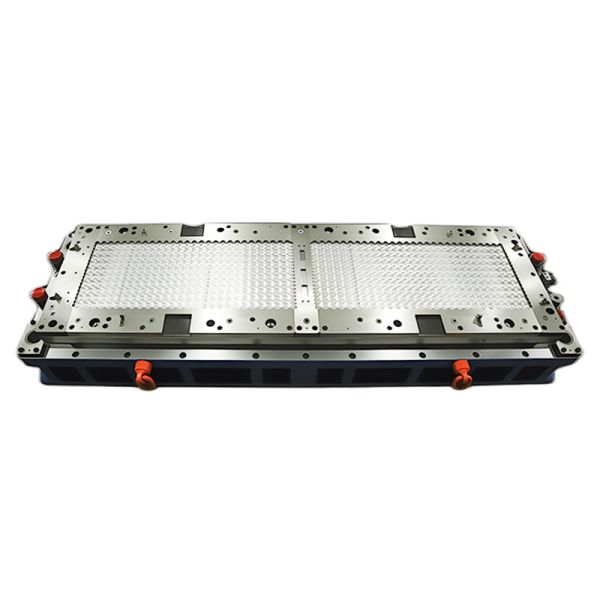

Washing Machine Drum Sheet Washing Machine Stamping Die Prototype Metal Stamping Images
