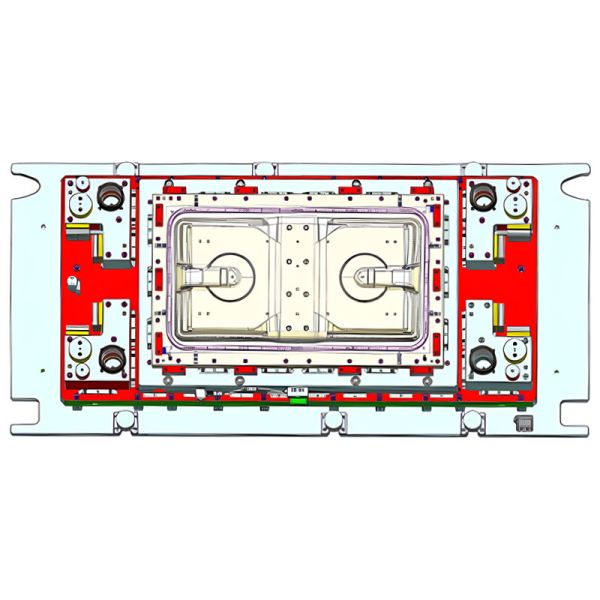

SUS430 Metal Stamping Tooling Dishwasher Tub Top Stage Tooling Stage Mold

Brand Name : IDO

Model Number : dishwasher tub top

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Dishwasher tub top

Part Material : SUS430

Mould Type : Stage mold

Mould Size : 2100*1000*600mm

Mould Weight : 10T

Punch Tonnage : 500T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

SUS430 Dishwasher Tub Top Stage Tooling Metal Stamping Tooling For White Household Appliances

Description:

Perfectly suited for the white household appliance industry, our SUS430 Dishwasher Tub Top Stage Tooling delivers exceptional precision and durability. This metal stamping tooling is specifically engineered for SUS430 stainless steel, ensuring a flawless and consistent finish for every dishwasher tub top. Its robust design is built for high-volume production, making it a reliable choice for your manufacturing needs.

Quick Detail:

Cycle: 6~14s (determined by product characteristics)
Punch edge sharpening: after 200,000~300,000 shots
Maintenance Interval: Every 250,000 hits. The frequency of scheduled maintenance to prevent breakdowns.
Part Ejection: Air-assisted. A method for reliable part removal to prevent double stamping.

Metal Stamping Tooling Released Commercial Components Brands:

Item		Option 1	Option 2	Option 3
1	Standard piercing punches (with or without ejectors)	MISUMI	DAYTON	FIBRO
2	Standard piercing matrix	MISUMI	DAYTON	FIBRO
3	Guide elements columns, bushes, die sets (precision plates)	MISUMI	FIBRO	DANLY
4	Sliding wear plates (bronze plus graphite)	MISUMI	FIBRO	DAYTON
5	Cam mechanisms	MISUMI	FIBRO	OMCR
6	Coil steel springs	MISUMI	FIBRO	SPECIAL SPRINGS
7	Nitrogen gas springs	MISUMI	KALLER	SPECIAL SPRINGS
8	Screws,fastener, pins, stripper bolts,	MISUMI	FIBRO	DAYTON
9	Spring guide pins, pilots, ejectors ,stock lifters, pad retainer, pilot shedders	MISUMI	FIBRO	DAYTON
10	Rotary bending mechanisms	MISUMI	DAYTON
11	Lifting elements / rotary eyebolts	MISUMI	FIBRO	DAYTON
12	Pneumatic valves and electrovalves	MISUMI	FESTO	SCHMALZ
13	Scraps pneumatic evacuator/shakers	MISUMI	FIBRO
14	Electrical connectors	HARTING	HARTING	ILME
15	Tool Steel	ASSAB	ASSAB	GROEDITZ
16	PVD Coating	OERLIKON	OERLIKON
17	Tool Bronze	AMPCO	AMPCO

SUS430 Metal Stamping Tooling Dishwasher Tub Top Stage Tooling Stage Mold
